Structural Gradient Bias in Hardware-Efficient Quantum Circuits

Research Project · Variational Quantum Algorithms / Quantum Machine Learning

Overview

Much of the literature on trainability in variational quantum algorithms focuses on barren plateaus, where gradients vanish globally as the system size or circuit depth increases.

In this project, I investigated a different failure mode: gradients can remain measurable while being distributed highly unevenly across the circuit.

I refer to this phenomenon as structural gradient bias.

When a local cost observable is used with a hardware-efficient ansatz, parameters located near the observable’s support can dominate the learning signal, while distant parameters receive substantially weaker gradients. Optimization can therefore become strongly localized even in regimes where a conventional barren plateau is absent.

Structural Gradient Bias

Consider a parameterized quantum circuit $U(\theta)$ and a local cost observable $O$.

The objective is $C(\theta)=\langle 0 \vert U^\dagger(\theta) O U(\theta) \vert 0\rangle$.

For each parameter $\theta_i$, the gradient $g_i=\partial C/\partial\theta_i$ measures how strongly that parameter participates in optimization.

A non-vanishing total gradient norm does not guarantee that this learning signal is spatially well distributed. In hardware-efficient circuits, I observed that gradient energy can remain concentrated around parameters geometrically close to the local observable, while parameters farther away contribute only weakly.

This motivates a distinction between

• global gradient suppression, associated with barren plateaus, and
• spatial gradient concentration, associated with structural gradient bias.

The second can impair trainability even when the first is absent. Moreover, the effect is strongly geometry dependent: local circuit modifications can alter how gradient energy is distributed, but they do not necessarily eliminate the spatial imbalance altogether.

Operator-Spreading Perspective

I analyzed this behavior in the Heisenberg picture.

Propagating the local observable backward through the circuit gives $O(t)=U^\dagger(t) O U(t)$.

As the operator spreads across additional qubits, more parameters can become coupled to the effective observable and therefore receive meaningful gradient signal.

This suggests the qualitative connection

operator spreading → larger effective learning region → more spatially distributed gradients.

Conversely, when layers commute with the relevant components of the local observable, backward operator growth can be strongly restricted. The learning signal then remains confined to a smaller effective light cone.

Commutativity Bottleneck

A particularly important case occurs when the local cost is dominated by $Z$-type operators and nearby circuit generators commute with those operators.

For example, $[Z,R_Z(\theta)]=0$.

Such commuting transformations do not generate new Pauli components under conjugation and therefore contribute little to operator branching.

By contrast, a non-commuting local rotation such as $R_X(\phi)$ transforms $Z$ into $R_X^\dagger(\phi) Z R_X(\phi)$, generating a mixture of non-commuting Pauli components.

These components can subsequently propagate through entangling layers and couple the observable to a larger region of the circuit.

This led me to view trainability partly as a problem of operator-growth geometry, rather than solely as a problem of gradient magnitude.

Geometry-Aware Local Scrambling

To mitigate the commutativity bottleneck, I investigated a minimal intervention that I call local scrambling.

The idea is to insert small non-commuting rotations near the support of the local cost observable. These rotations locally convert otherwise commuting operator components into components capable of spreading through subsequent entangling gates.

The modification is intentionally local and uses gate generators already available within the hardware-efficient ansatz family. This allows the intervention to alter the local propagation structure without requiring a qualitatively different variational model.

The intended mechanism is

local non-commutativity → enhanced operator branching → redistributed gradient support.

Rather than increasing gradients uniformly everywhere, local scrambling acts as a geometry-aware preconditioner that redistributes learning signal within the finite operator light cone.

Diagnostics

To characterize this spatial trainability behavior, I introduced three complementary diagnostics.

Structural Bias

I measure the imbalance between gradient energy near the local cost support and that received by distant parameters.

A generic measure is $B=\log(E_{\mathrm{center}}/E_{\mathrm{edge}})$, where $E_{\mathrm{center}}$ and $E_{\mathrm{edge}}$ denote gradient-energy aggregates over central and distant regions.

A large positive $B$ indicates strong localization of the learning signal.

Gradient Entropy

To quantify how evenly gradient energy is distributed across the circuit, I normalize the local gradient energies as $p_i=g_i^2/\sum_j g_j^2$.

I then evaluate the entropy-like quantity $H_{\mathrm{grad}}=-\sum_i p_i\log p_i$.

Higher gradient entropy corresponds to gradient energy being distributed across a larger set of parameters, while lower entropy indicates stronger concentration in a smaller subset of the circuit.

Spatial Trajectories

I also tracked the evolution of the objective, structural bias, and gradient entropy throughout optimization rather than examining only initialization.

This makes it possible to distinguish circuits that initially exhibit similar gradient scales but evolve toward qualitatively different spatial learning patterns.

Observed Trade-off

The experiments revealed a trade-off between convergence speed and the spatial distribution of the learning signal.

The baseline hardware-efficient ansatz reduced the local objective most rapidly, consistent with a learning signal strongly aligned with the local cost region. Some scrambling layouts converged more slowly but maintained lower structural bias or higher gradient entropy during parts of the optimization trajectory.

The effect was strongly geometry dependent. In the $N=14$, $L=30$ experiments, centrally placed scrambling layouts could improve structural-bias or gradient-entropy behavior over substantial portions of training, but this did not necessarily translate into uniformly distributed gradients or faster convergence.

Thus, the relevant question is not simply whether scrambling increases gradient magnitude, but how a chosen circuit geometry redistributes trainability across the parameter space.

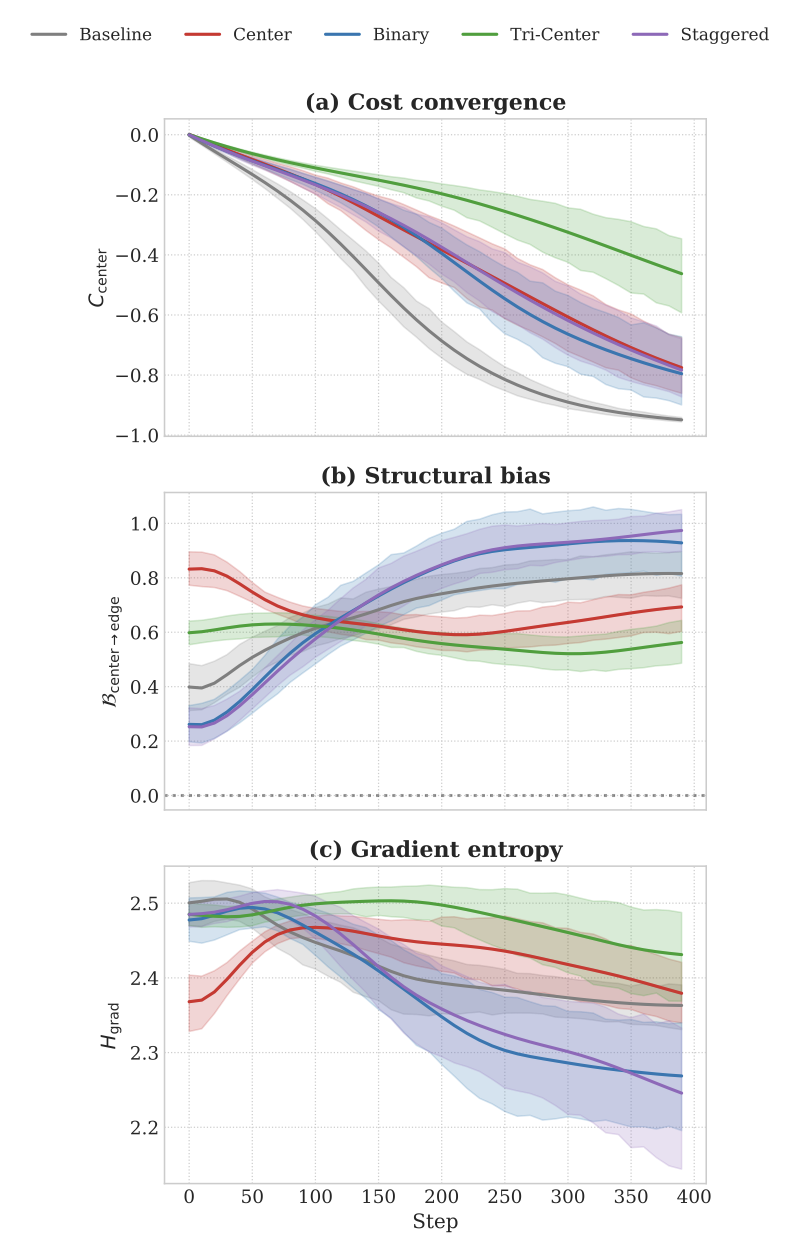

Optimization dynamics at N = 14 and L = 30. The baseline achieves the fastest cost reduction, while scrambling layouts exhibit different trade-offs in center–edge structural bias and gradient entropy. Improved spatial balance is geometry dependent and does not necessarily coincide with faster convergence.

Light-Cone and Scalability Limits

Local scrambling does not remove finite-range propagation constraints.

The influence of a local modification remains bounded by the circuit’s operator light cone and by an effective correlation length $\xi$.

Parameters located at distances much larger than this scale can still experience exponentially suppressed gradients. Consequently, if circuit size grows while the number of scrambling regions remains fixed, center-to-edge structural bias can re-emerge.

This behavior is also visible in finite-size scaling. A centrally placed scrambler reduces structural bias relative to the baseline over the tested system sizes, but the bias still increases as the system becomes larger. This is consistent with a redistribution mechanism whose influence remains spatially limited.

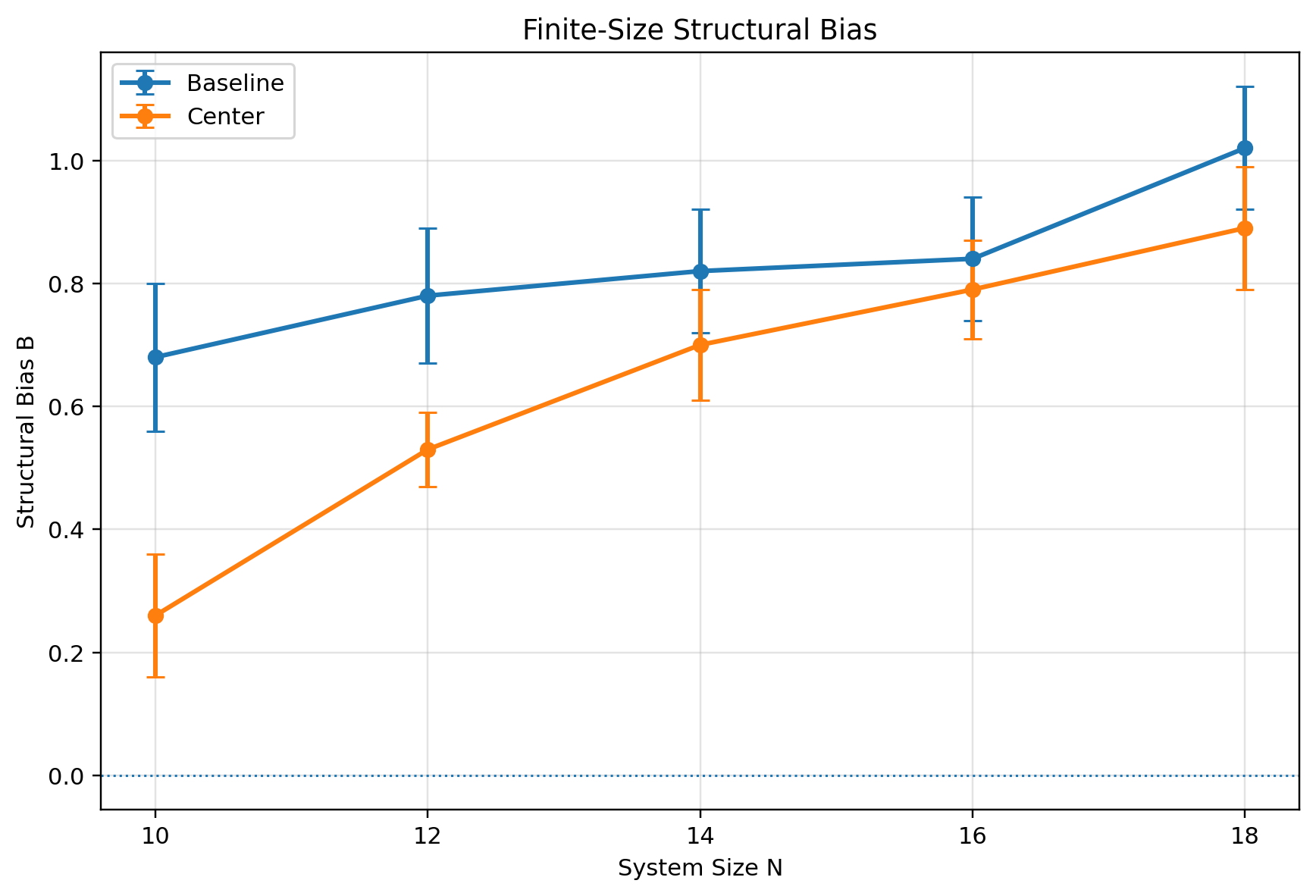

Finite-size scaling of center–edge structural gradient bias. A centrally placed scrambler reduces the bias relative to the baseline over the tested system sizes, but the bias continues to increase with system size, consistent with a finite operator-spreading range.

This suggests that scalable spatial gradient redistribution may require a scrambler density sufficient to keep each parameter within approximately $O(\xi)$ of a region that promotes operator growth.

In this sense, structural gradient bias is not only an optimization issue but also a circuit-geometry and locality problem.

Key Contributions

• Identified structural gradient bias as a trainability failure mode distinct from conventional global barren plateaus.
• Connected spatial gradient concentration to operator spreading, commutativity, and finite circuit light cones.
• Proposed geometry-aware local scrambling as a minimal intervention for modifying local operator growth and redistributing spatial gradient structure.
• Introduced quantitative diagnostics based on center–edge structural bias, gradient entropy, and spatial optimization trajectories.
• Characterized a trade-off between rapid local convergence and more spatially balanced parameter participation.
• Identified finite correlation length and scrambler density as important constraints on the scalability of spatial gradient redistribution.

Research Topics

Variational Quantum Algorithms · Quantum Machine Learning · Trainability · Barren Plateaus · Operator Spreading · Light Cones · Hardware-Efficient Ansatz
